Dielectric Breakdown Voltage

Overview

 Portable Oiltester

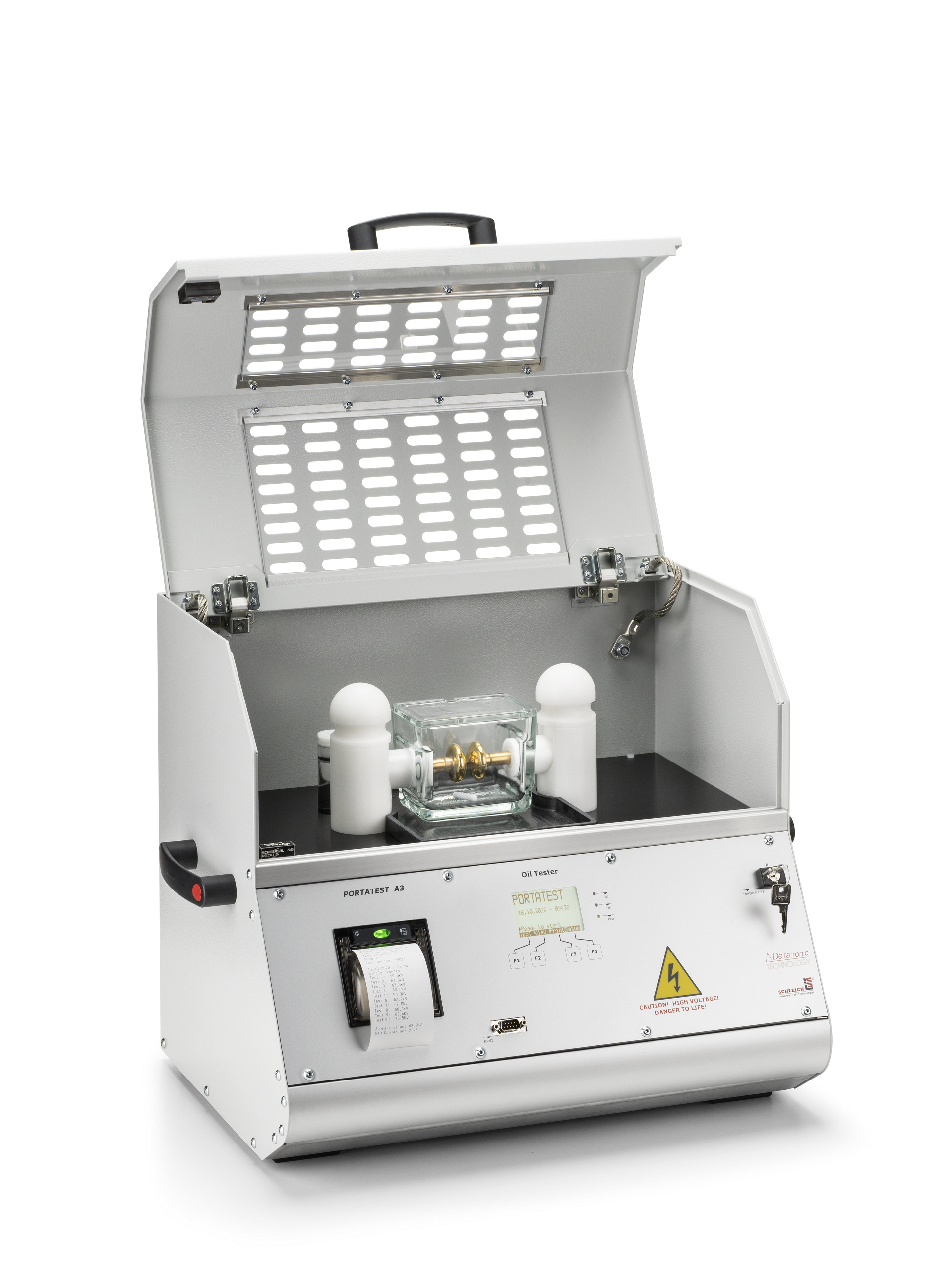

The PORTATEST Oiltester is a fully automatic tester for determination of the dielectric breakdown voltage of insulating liquid. It has been designed for laboratory use as well as for field use for service and commissioning. The PORTATEST is very comfortable and easy in use. The requested testing standard may be selected via menu. The corresponding electrode type as well as the electrode spacing will be displayed for confirmation before starting the test.

After placing the test vessel with the oil sample into the test chamber, the protection lid needs to be closed. For maximum operator security the protection lid is equipped with a security interlock key switching off the HV when opened during testing. When starting the test, sample temperature as well as a customer specific sample number may be entered and will than be integrated to the test report printout. The testing sequence according to the selected testing standard is performed fully automatically.





Specifications



Technical Specifications :

Model PORTATEST 60A-3 80A-3 100A-3
Article-No. 4018400 4018401 4018402
Điện áp kiểm tra: 60 kV RMS 80 kV RMS 100 kV RMS
Khối lượng. 35 kg 39 kg 39 kg

Nguồn điện áp chính cung cấp: 110, 230, 240 V / 50 or 60 Hz - selectable via voltage selector
Năng lượng tiêu tốn tối đa 900 VA
Điện thế đo lường: True RMS measurement, Resolution 0.1 kV, Accuracy +/- 1 kV
Switch-off dòng/thời gian chương trình 1...5 mA / <1ms
Kiểm tra điện áp chịu được Tốc độ tăng, giữ điện áp và thời gian giữ có thể lựa chọn trong 5 bước
Tốc độ tăng 0.5 ... 5 kV/s programmable, in automatic mode selected by testing standard
Tiêu chuẩn kiểm tra IEC 156/95, VDE 370/96, BS 5874/80, UTE C 27-221/74, UNE 21309/89,
NEN 10156, SEV 3141/69, CEI 10-l/73, ASTM D1816/90, ASTM D877/90,
JIS 2101-82, JIS Silicon 2101/82, EN 60243-1, ASTM D 149, JIS 2123 selectable
via menu, additionally 10 User testing sequences freely programmable
Hiển thị LCD Graphic display with backlight
Máy in Built in Thermal - Printer, 24 Characters/line
Khuấy từ Magnetic stirrer, PTFE-bar
Số mẫu Successive Number or entered by operator before starting the test
Ngày và thời gian Built in clock with calendar function
Giao diện Serial Interface RS 232C on the front panel
Nhiệt độ tối đa Operation 0 to 50°C, storing -20° to +50° C







Application

Features:

    • Fully automatic Oiltester for laboratory and field use during service and commissioning

    • Testing voltage up to 100 KV

    • Pre-Programmed for common national and international testing standards

    • Up to ten free programmable user testing sequences

    • Short switch off time

    • Indication of individual breakdown values, average value and standard deviation

    • Graphic-Display with backlight

    • Clear operator guiding via four soft keys F1…F4

    • Input dialog for sample temperature and sample number if require.

    • Multi-language menu, language selected via Setup menu

    • PC-data storage via serial interface RS232

    • Glass test vessel with lid and magnetic stirrer

    • Different electrodes available (mushroom, sphere or disc)

    • Electrode spacing adjustable

    • Integrated printer

Download

Standards



IEC 156/95, VDE 370/96, BS 5874/80, UTE C 27-221/74, UNE 21309/89, NEN 10156, SEV 3141/69, CEI 10-l/73, ASTM D1816/90, ASTM D877/90, JIS 2101-82, JIS Silicon 2101/82, selectable via menu, additionally 10 User testing sequences freely programmable
